OS2 Armored Fiber Optic Patch Cable — LC to LC Duplex Uniboot, Single Mode 9/125μm G.657.A2, LSZH

Price range: $20.74 through $769.99

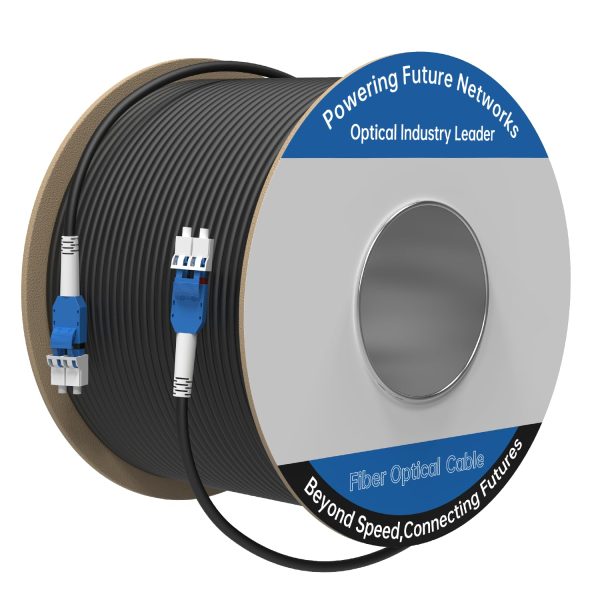

Outdoor armored OS1/OS2 single-mode duplex patch cable: LC/UPC to LC/UPC Uniboot, helical steel armor + Kevlar, low-friction LSZH jacket OD 3.0mm. Fixed lengths 1m–1000m.

SKU: N/A Categories: ,

Pre-terminated armored single-mode duplex patch cable for FTTH, data centers, inter-building backbones and long-distance outdoor runs. Fixed-specification lengths from 1m to 1000m — no custom cutting.

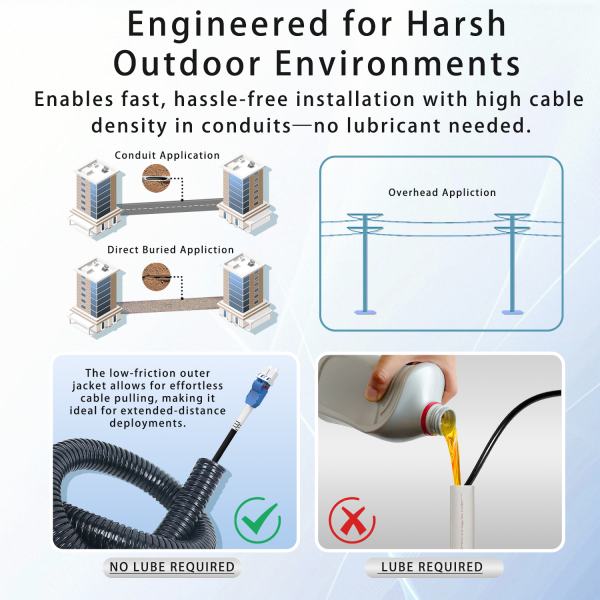

  • Rugged Armored Outdoor Design: Built-in stainless steel armor resists crushing, moisture, rodent bites, and UV exposure — for underground conduits, exterior building links, and industrial wiring.
  • High-Performance SMF Fiber: OS1/OS2 compatible low-loss single-mode duplex for stable long-distance transmission. Suited to 1G/10G/40G Ethernet, telecom, and backbone networks (per listing).
  • Uniboot Connectors for Dense Cabling: Two fibers in a single LC housing — less clutter, better airflow, simpler routing in high-density patch panels and data centers.
  • Wide Compatibility: Cisco, Juniper, Arista, Ubiquiti UniFi, Mikrotik, TP-Link, Netgear, Intel, HPE, Fortinet and more; works with SFP/SFP+/XFP/QSFP+ transceivers, switches, media converters, ONU/OLT ports (per listing).
  • Low-Friction LSZH Jacket: Ultra-low friction coefficient (μ<0.2) makes the cable easy to push or pull through long or congested conduits; flame-retardant, low-smoke per listing.
Fiber Mode OS1/OS2 Single Mode 9/125μm, G.657.A2 bend-insensitive
Fiber Count 2 Fibers (Duplex)
Connectors LC/UPC to LC/UPC, Uniboot (Male-to-Male)
Insertion Loss ≤0.3dB (per listing spec table)
Return Loss ≥50dB (per listing spec table)
Wavelength 1310nm – 1550nm
Armor / Strength Stainless steel tube (helical) + Kevlar
Jacket Black LSZH, OD 3.0mm, ultra-low friction (μ<0.2), flame-retardant low-smoke (per listing)
End-face Moisture-resistant baked polish
Temperature −40°C ~ +85°C
Standards Listed RoHS, ISO/IEC 11801, IEC-61754 (as stated on listing; no UL/OFNR/OFNP rating claimed)

Specs and bullets are from our own Amazon listing (ASIN B0DSJ7LZKK, captured 2026-10-22) and product images. Outdoor positioning per listing; no UL/OFNR/OFNP rating is claimed.

Length

1 m (3.3 ft), 10 m (33 ft), 100 m (328 ft), 1000 m (3281 ft), 15 m (49 ft), 150 m (492 ft), 2 m (6.6 ft), 20 m (66 ft), 200 m (656 ft), 3 m (9.8 ft), 30 m (98 ft), 300 m (984 ft), 37 m (121 ft), 400 m (1312 ft), 5 m (16.4 ft), 50 m (164 ft), 500 m (1640 ft), 610 m (2001 ft), 75 m (246 ft), 800 m (2625 ft)
Fiber Mode

OS2 Single-Mode
Fiber Count

2-Fiber (Duplex)
Connectors

LC/UPC to LC/UPC
